进口化工混流泵
- 订购说明：
- ·克莱产品：如有指定型号标准，请直拨销售热线咨询价格，了解详情！
- ·技术支持：如没有指定产品型号规格，请把工况要求、设计图纸、技术规范，发送传真或邮件至本公司。
- ·产品订货参数：通径（DN）,公称压力（Mpa），温度（℃），连接方式（螺纹、法兰、对夹等）。
- ·产品驱动方式：手动、蜗轮、气动、电动等。
- ·产品标准:国标GB、日标JIS、美标ANSI、德标DIN、英标BS、欧标EN等。
- ·报价确认：本公司提供报价清单及技术标准说明至客户确认，在双方技术各方面确认后再拟定合同。
- ·阀门质量要求、质量标准、供方对质量负责的条件:按国家有关质量标准。

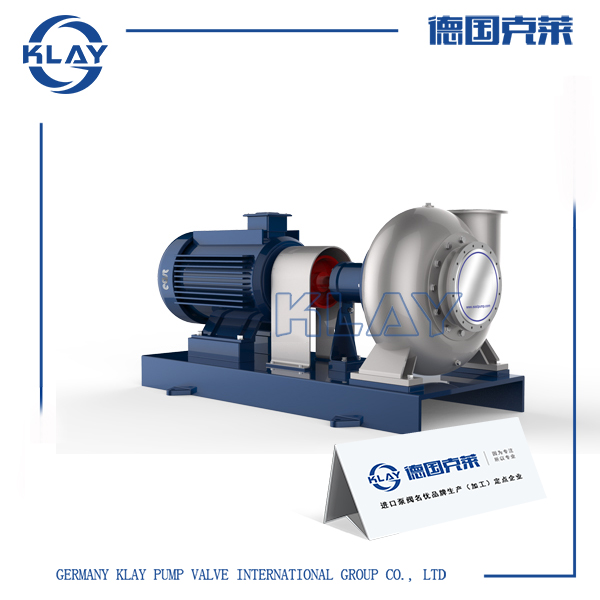

产品介绍一、进口化工混流泵产品详情
进口化工混流泵是德国克莱在强制循环泵基础上及经多次升级换代，在行业中屡获殊荣。该泵具有流量大、效率高、扬程低、转速低和方便维修等特点，在其检查或拆卸叶轮、轴封时，毋须将与泵体相连接的管路拆开。泵轴装有防护轴套，轴承用稀油润滑，轴承箱里的泊位，可由"恒位"油杯来控制。泵体上铸有支脚，可承受来自管路的任何载荷，并直接传给基础。因此，泵轴不会因泵承受载荷而产生弯曲，从而保证了轴承具有的使用寿命。泵上还配备完整的排气装置，以供吸入管路排气。可选配API682推荐密封布置和冲洗方案。
二、进口化工混流泵技术参数
| 名称： | 进口化工混流泵 |
| 型号： | KLHW |
| 输送介质： | 中性或有腐蚀性液体或少量颗粒 |
| 适用行业： | 化工，环保，废水，水，海化淡化 |
| 产品特点： | 大流量、低扬程、高效 |
| 结构形式： | 卧式、泵与电机联轴器连接 |
| 口径： | 1～100mm |
| 流量： | 1～7000m3/h |
| 扬程： | 1～80m |
| 转速： | 980/1450r/min |
| 工作温度： | -20～+120℃ |
| 压力等级： | 1.6Mpa |
三、进口化工混流泵产品用途
广泛应用于石油、化工、制碱、冶炼、稀土、农药、染料、医药、造纸、电镀、电解、无线电、化成箔、科研机构、国防工业等生产流程中输送腐蚀性液体，尤其适用于强碱、有机容剂和贵重液体的输送。
四、进口化工混流泵优势特点
1、泵进出口方向改变容易：用户只需要将叶轮反装，同时改变泵转向、泵进出口方向即可改变;
2、可靠性高：轴悬臂端设导流气室，减少轴挠度;
3、水冷式轴承座：两端轴承处有水冷夹套，用稀油润滑，使用寿命长;
4、叶轮具有优良的抗汽蚀性能，在压力0.05MPa下也能正常运行;
5、国际标准轴联后拉式设计，无需拆卸管道，维修方便。

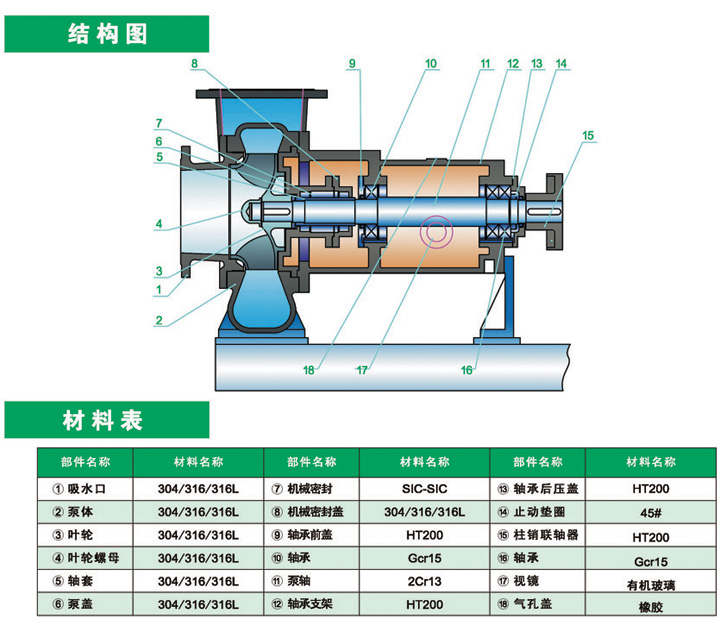

五、进口化工混流泵结构尺寸
| 型号 | 比转速 (ns) | 转速 r/min | 流量 m3/h | 扬程 M | 效率 % | 轴功率 Kw | 配用电机 | 汽蚀余量 (m) | ||
| r = 1.00 Specific gravity | r =1.35 Specific gravity | r =1.84 Specific gravity | ||||||||
| 200-200-250 | 217 | 1450 | 300 | 13.5 | 79 | 13.97 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 | 4 |
| 240 | 1450 | 270 | 11 | 78 | 10.38 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 | 3.9 | |
| 272 | 1450 | 240 | 8.6 | 75 | 7.50 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | 3.8 | |
| 200-250-250 | 332 | 1450 | 530 | 11.2 | 80 | 20.22 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | 5.5 |
| 351 | 1450 | 500 | 10 | 79 | 17.25 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | 3.9 | |
| 380 | 1450 | 460 | 8.5 | 78 | 13.66 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 | 3.8 | |
| 425 | 1450 | 430 | 7 | 75 | 10.94 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 | 5.5 | |
| 225-250-300 | 294 | 1450 | 700 | 15.8 | 80 | 37.67 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 5 |
| 318 | 1450 | 650 | 13.6 | 79 | 30.49 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 4.9 | |
| 353 | 1450 | 625 | 11.5 | 78 | 25.11 | Y200L-4/30 | Y225S-4/37 | Y250M-4/55 | 4.8 | |
| 391 | 1450 | 575 | 9.5 | 75 | 19.85 | Y180L-4/22 | Y225S-4/37 | Y225M-4/45 | 6 | |
| 250-250-300 | 311 | 1450 | 650 | 14 | 74 | 33.51 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 6 |
| 339 | 1450 | 600 | 11.8 | 73 | 26.43 | Y200L-4/30 | Y225M-4/45 | Y250M-4/55 | 5.8 | |
| 366 | 1450 | 552 | 10.1 | 72 | 21.10 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | 5.4 | |
| 387 | 1450 | 520 | 9 | 70 | 18.22 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | 7 | |
| 300-250-300 | 264 | 1450 | 800 | 20 | 75 | 58.13 | Y280S-4/75 | Y280M-4/90 | Y315M-4/132 | 6 |
| 287 | 1450 | 740 | 17 | 74 | 46.33 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 | 5.8 | |
| 310 | 1450 | 680 | 14.5 | 72 | 37.32 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 5.4 | |
| 330 | 1450 | 640 | 12.8 | 70 | 31.89 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 7 | |
| 250-300-350 | 315 | 1450 | 1100 | 19.5 | 80 | 73.06 | Y2B0M-4/90 | Y315S-4/110 | Y315L1-4/160 | 6.4 |
| 340 | 1450 | 1040 | 17 | 80 | 60.22 | Y2B0S-4/75 | Y280M-4/90 | Y315M-4/132 | 6 | |
| 360 | 1450 | 950 | 14.8 | 79 | 48.50 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 | 5.8 | |
| 406 | 1450 | 880 | 12 | 77 | 37.37 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 8 | |
| 328 | 980 | 750 | 8.5 | 75 | 23.16 | Y225M-6/30 | Y250M-6/37 | Y280M-6/55 | 5 | |
| 345 | 980 | 700 | 7.6 | 74,5 | 19.46 | Y200L2-6/22 | Y225M-6/30 | Y280S-6/45 | 4.8 | |
| 型号 | 比转速(ns) | 转速 r/min | 流量m3/h | 扬程M | 效率% | 轴功率Kw | 配用电机 | 汽蚀余量(m) | ||
| r = 1.00Specific gravity | r =1.35Specific gravity | r =1.84Specific gravity | ||||||||
| 250-300-350 | 373 | 980 | 650 | 6.5 | 74 | 15.56 | Y180L1-6/18.5 | Y225M-6/30 | Y250M-6/37 | 4.6 |
| 418 | 980 | 600 | 5.3 | 72 | 12,04 | Y180L-6/15 | Y200L2-6/22 | Y225M-6/30 | 6 | |
| 300-300-350 | 254 | 980 | 800 | 12.5 | 83 | 32.83 | Y250M-6/37 | Y280M-6/55 | Y310S-6/75 | 6 |
| 275 | 980 | 736 | 10.6 | 82 | 25.93 | Y225M-6/30 | Y280S-6/45 | Y280M-6/55 | 5.8 | |
| 299 | 980 | 680 | 9 | 81 | 20,59 | Y225M-6/30 | Y250M-6/37 | Y280S-6/45 | 5.6 | |
| 317 | 980 | 640 | 8 | 78 | 17.89 | Y200L2-6/22 | Y225M-6/30 | Y250M-6/37 | 7 | |
| 300-350-400 | 329 | 980 | 1300 | 12.2 | 80 | 54.02 | Y310S-6/75 | Y315M1-6/90 | Y315M2-6/110 | 4.4 |
| 342 | 980 | 1200 | 11 | 79 | 45.53 | Y280M-6/55 | Y310S-6/75 | Y315M1-6/90 | 4 | |
| 389 | 980 | 1150 | 9 | 76 | 37.11 | Y280S-6/45 | Y280M-6/55 | Y310S-6/75 | 4 | |
| 440 | 980 | 1050 | 7.2 | 74 | 27,84 | Y225M-6/30 | Y280S-6/45 | Y280M-6/55 | 6 | |
| 350-350-400 | 259 | 980 | 1100 | 15 | 72 | 62.45 | Y310S-6/75 | Y315M1-6/90 | Y315M3-6/132 | 5 |
| 282 | 980 | 1012 | 12.7 | 70 | 50.03 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 4.9 | |
| 306 | 980 | 935 | 10.8 | 68 | 40.47 | Y280S-6/45 | Y310S-6/75 | Y315M1-6/90 | 4.5 | |
| 324 | 980 | 880 | 9.6 | 64 | 35.97 | Y280S-6/45 | Y280M-6/55 | Y310S-6/75 | 4.8 | |
| 350-350-450 | 243 | 980 | 1600 | 21 | 83 | 110.31 | Y315M3-6/132 | Y315-6/160 | 5.2 | |
| 276 | 980 | 1500 | 17 | 82 | 84:74 | Y315M1-6/90 | Y315M3-6/132 | 5.3 | ||
| 322 | 980 | 1450 | 13.5 | 80 | 66.68 | Y310S-6/75 | Y315M2-6/110 | Y315M3-6/132 | 5.5 | |
| 356 | 980 | 1300 | 11 | 78 | 49.96 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 7.8 | |
| 350-400-450 | 318 | 980 | 2000 | 17 | 83 | 111.63 | Y315M3-6/132 | Y315-6/160 | Y355M3-6/220 | 6 |
| 341 | 980 | 1900 | 15 | 82 | 94.71 | Y315M2-6/110 | Y315-6/160 | Y355M2-6/200 | 5.5 | |
| 387 | 980 | 1800 | 12.2 | 80 | 74.80 | Y315M1-6/90 | Y315M3-6/132 | Y315-6/160 | 5.2 | |
| 517 | 980 | 1700 | 8 | 76 | 48.76 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 8 | |
| 320 | 740 | 1500 | 9.6 | 81 | 48.44 | Y315S-8/55 | Y315M1-8/75 | Y315M3-8/110 | 4 | |
| 357 | 740 | 1450 | 8.1 | 80 | 40.01 | Y280M-8/45 | Y315M1-8/75 | Y315M2-8/90 | 3.9 | |
| 384 | 740 | 1350 | 7 | 79 | 32,60 | Y280S-8/37 | Y315S-8/55 | Y315M1-8/75 | 3.6 | |
| 431 | 740 | 1250 | 5.7 | 78 | 24.89 | Y250M-8/30 | Y280S-8/37 | Y315S-8/55 | 5.8 | |
| 400-400-550 | 240 | 980 | 2400 | 28 | 86 | 212.93 | Y355L-6/250 | 7 | ||
| 281 | 980 | 2300 | 22 | 86 | 160.33 | Y355S3-6/185 | Y355L-6/250 | 7 | ||
| 313 | 980 | 2100 | 18 | 85 | 121.18 | Y315M3-6/132 | Y355S3-6/185 | Y355L-6/250 | 7 | |
| 359 | 980 | 2000 | 14.5 | 84 | 94.08 | Y315M2-6/110 | Y315-6/160 | Y355S3-6/185 | 9.8 | |
| 型号 | 比转速(ns) | 转速 r/min | 流量m3/h | 扬程M | 效率% | 轴功率Kw | 配用电机 | 汽蚀余量(m) | ||
| r = 1.00Specific gravity | r =1.35Specific gravity | r =1.84Specific gravity | ||||||||
| 400-400-550 | 240 | 740 | 1812 | 16 | 85 | 92.95 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 5 |
| 282 | 740 | 1737 | 12,5 | 85 | 69,61 | Y315M1-8/75 | Y315M3-8/110 | Y355S4-8/160 | 5 | |
| 314 | 740 | 1586 | 10.2 | 83 | 53.11 | Y315M1-B/75 | Y315M2-8/90 | Y315M3-8/110 | 5 | |
| 361 | 740 | 1510 | 8.2 | 80 | 42.18 | Y315S-8/55 | Y315M1-8/75 | Y315M2-8/90 | 7 | |
| 400-450-550 | 357 | 980 | 3200 | 20 | 86 | 202.79 | Y355L-6/250 | 8 | ||
| 374 | 980 | 3000 | 18 | 85 | 173.12 | Y355S4-6/200 | Y355L-6/250 | 7.5 | ||
| 394 | 980 | 2800 | 16 | 84 | 145.33 | Y315-6/160 | Y355M-6/220 | Y355L1-6/280 | 7.1 | |
| 412 | 980 | 2500 | 14 | 82 | 116.31 | Y315M3-6/132 | Y355S3-6/185 | Y355L-6/250 | 7 | |
| 355 | 740 | 2400 | 11.4 | 82 | 90.92 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 6 | |
| 367 | 740 | 2200 | 10.3 | 81 | 76.23 | Y315M2-8/90 | Y355S2-8/132 | Y355S4-8/160 | 5.4 | |
| 384 | 740 | 2000 | 9.1 | 78 | 63.58 | Y315M1-8/75 | Y315M3-8/110 | Y355S2-8/132 | 5 | |
| 402 | 740 | 1800 | 8 | 77 | 50.96 | Y315S-8/55 | Y315M1-8/75 | Y315M3-8/110 | 8 | |
| 450-500-600 | 323 | 740 | 3300 | 16 | 86 | 167.30 | Y355M-8/185 | Y355L2-8/250 | 5.2 | |
| 346 | 740 | 3100 | 14 | 85 | 139.14 | Y355S4-8/160 | Y355M4-8/200 | 5 | ||
| 376 | 740 | 2900 | 12 | 84 | 112.89 | Y355S2-8/132 | Y355S4-8/160 | Y355L1-8/220 | 5 | |
| 408 | 740 | 2600 | 10 | 80 | 88.56 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 7.3 | |
| 325 | 580 | 2600 | 9.8 | 85 | 81.69 | Y355S2-10/90 | Y355M-10/132 | Y355L-10/160 | 3.4 | |
| 351 | 580 | 2500 | 8.6 | 85 | 68.93 | Y315M3-10/75 | Y355S4-10/110 | Y355L-10/160 | 3.1 | |
| 363 | 580 | 2300 | 7.8 | 83 | 58.90 | Y315M3-10/75 | Y355S2-10/90 | Y355M-10/132 | 3 | |
| 426 | 580 | 2200 | 6.1 | 81 | 45.15 | Y315M.V 10/55 | Y315M3-10/75 | Y355S2-10/90 | 5.8 | |
| 500-500-650 | 253 | 740 | 3700 | 24 | 88 | 274.98 | 5 | |||
| 278 | 740 | 3400 | 20 | 87 | 212.99 | 5 | ||||
| 318 | 740 | 3200 | 16 | 86 | 162.23 | Y355M-8/185 | 5 | |||
| 371 | 740 | 3000 | 12.5 | 85 | 120.22 | Y355S2-8/132 | Y355M-8/185 | 7 | ||
| 500-550-650 | 319 | 740 | 4500 | 20 | 86 | 285.18 | 5,5 | |||
| 345 | 740 | 4300 | 17.5 | 85 | 241.24 | 5.1 | ||||
| 374 | 740 | 4000 | 15 | 83 | 196.99 | 5 | ||||
| 417 | 740 | 3800 | 12.5 | 82 | 157.85 | Y355M-8/185 | Y355L2-8/250 | 7.6 | ||
| 317 | 580 | 3600 | 12.6 | 84 | 147.15 | Y355L-10/160 | 3.8 | |||
| 341 | 580 | 3400 | 11 | 84 | 121.33 | Y355M-10/132 | 3.4 | |||
| 型号 | 比转速(ns) | 转速 r/min | 流量m3/h | 扬程M | 效率% | 轴功率Kw | 配用电机 | 汽蚀余量(m) | ||
| r = 1.00Specific gravity | r=1.35Specific gravity | r =1.84Specific gravity | ||||||||
| 500-550-650 | 372 | 580 | 3200 | 9.4 | 83 | 98.76 | Y355S4-10/110 | Y355L-10/160 | Y355L-10/160 | 3.1 |
| 406 | 580 | 3000 | 8 | 81 | 80.74 | Y355S2-10/90 | Y355M-10/132 | 5.8 | ||
| 550-600-730 | 321 | 580 | 4800 | 15 | 87 | 225.52 | 5.2 | |||
| 332 | 580 | 4400 | 13,5 | 87 | 186.05 | 5 | ||||
| 362 | 580 | 4100 | 11.5 | 85 | 151.16 | Y355L-10/160 | 4.9 | |||
| 407 | 580 | 3900 | 9.5 | 83 | 121.64 | Y355M-10/132 | 7.2 | |||
| 313 | 480 | 3900 | 10.5 | 83 | 134.45 | 3.5 | ||||
| 342 | 480 | 3700 | 9 | 82 | 110.66 | 3.2 | ||||
| 358 | 480 | 3400 | 8 | 81 | 91.51 | 2.9 | ||||
| 406 | 480 | 3200 | 6.5 | 80 | 70.85 | 2.7 | ||||
| 600-600-800 | 259 | 580 | 5200 | 21 | 88 | 338.15 | 5.6 | |||
| 298 | 580 | 5000 | 17 | 87 | 266.24 | 5.6 | ||||
| 327 | 580 | 4500 | 14 | 85 | 201.97 | 5.6 | ||||
| 383 | 580 | 4300 | 11 | 82 | 157.19 | 7.8 | ||||
| 600-650-800 | 332 | 580 | 6200 | 17 | 88 | 326.38 | 6.2 | |||
| 353 | 580 | 5800 | 15 | 86 | 275.67 | 6 | ||||
| 379 | 580 | 5400 | 13 | 83 | 230.48 | 5.8 | ||||
| 432 | 580 | 5100 | 10.5 | 80 | 182.41 | 8 | ||||
| 337 | 480 | 5200 | 11.5 | 83 | 196.33 | 4.3 | ||||
| 363 | 480 | 4900 | 10 | 81 | 164.85 | 3.8 | ||||
| 402 | 480 | 4700 | 8.5 | 79 | 137.80 | 3.7 | ||||
| 450 | 480 | 4400 | 7 | 75 | 111.91 | 7 | ||||
| 800-800-850 | 343 | 580 | 7200 | 18 | 85 | 415.49 | 6.5 | |||
| 373 | 580 | 6625 | 15.2 | 83 | 330.61 | 6.3 | ||||
| 403 | 580 | 6120 | 13 | 81 | 267.66 | 6.1 | ||||
| 429 | 580 | 5760 | 11.5 | 78 | 231.42 | 7 | ||||
| 346 | 480 | 5980 | 12.2 | 85 | 233.89 | 5.5 | ||||
| 377 | 480 | 5501 | 10.3 | 83 | 186.02 | 5.3 | ||||
| 418 | 480 | 5083 | 8.5 | 81 | 145.35 | 0.1 | ||||
| 433 | 480 | 4784 | 7.8 | 78 | 130.36 | 6 | ||||
